Y2AE90S-4 1.1kW 4P 400V 50Hz IC411-TEFC

Product features
Frame: 90mm Insulation Class: F
Output: 1.1kW Mounting: B3, B14, B5, B35
Rated Voltage: 230/400 V Terminal Box: Top
Frequency: 50Hz Duty: S1
Poles: 4p Ambient Temperature: -20～40°C
Synchronous Speed ​​1500 r/min Cooling: IC411-TEFC
Availability:

Y2AE90S-4 1.1kW 4P 400V 50Hz IC411-TEFC


Type:                       IE2         Y2AE90S-4     1.1kW      400V      50Hz
TECHNICAL DATA
Frame:90mm
Insulation Class:F
Output:1.1kW
Temperature Rise:50K
Frequency:50Hz
Duty:S1
Poles:4P
Ambient Temperature:-20～40°C
Rated Speed:1430rpm
Altitude:1000m.asl
Slip:5.01%
Protection Degree:IP55
Rated Voltage:    400V
Cooling:IC411-TEFC
Connection:Y
Vibration:2.8mm/s
Rated Current:  2.7A
Approx. Weight:
kg
Locked Rotor Current:600%
Moment of Inertia:0.00333kg.m2
No Load Current:


Noise Level (Lp):56dB(A)
Rated Torque:7.3Nm
Starting Method:Direct on line
Locked Rotor Torque:230%
Coupling:Direct
Breakdown Touque:230%
Direction of Rotation:Both (CW and CCW)
Service Factor:1.0

Load Type:Parabolic curve
Performance
                                                    Efficiency(%)
                                               Power Factor
                        50%75%100%
                   50%75%100%
                        79.581.981.8
                   0.510.640.73
Bearing   Information
Bearing   :DE NDE
Regreasing int, (h)DE NDE
6205 C06205 C0
1000010000
Standards
Specification  IEC60034-1
Noise IEC60034-9
Test IEC60034-2
Vibration IEC60034-14
Features
Frame Material


Aluminum

Painting


RAL5001

Fan cover material


Steel

Bolt material


carbon steel

Overload   protector(phenolic)

Without overload   protector
Overheat protector





Connection   cables quantity

6

Fan material


Plastic

Terminal box


Top

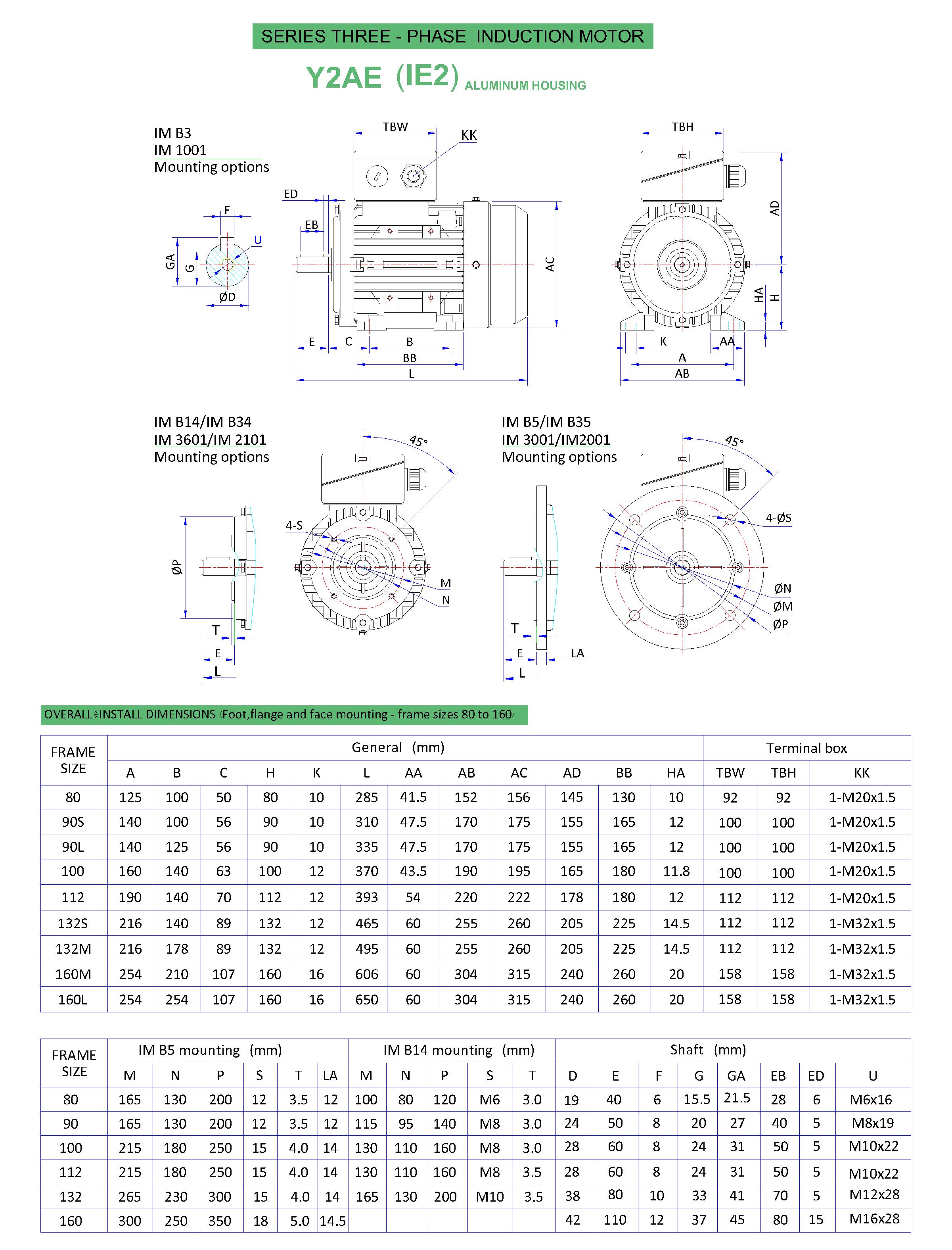

drawing
