Y2AE801-2 0.75kW 2P 400V 50Hz IC411-TEFC

Product features
Frame: 80mm Insulation Class: F
Output: 0.75kW Mounting: B3, B5, B35
Rated Voltage: 230/400 V Terminal Box: Top
Frequency: 50Hz Duty: S1
Poles: 2p Ambient Temperature: -20～40°C
Synchronous Speed ​​3000 r/min Cooling: IC411-TEFC
Availability:

Y2AE801-2 0.75kW 2P 400V 50Hz IC411-TEFC


Type:                                               IE2               Y2AE801-2         0.75kW           400V           50Hz
TECHNICAL DATA
Frame:80mm
Insulation Class:F
Output:0.75kW
Temperature Rise:61K
Frequency:50Hz
Duty:S1
Poles:2P
Ambient Temperature:-20～40°C
Rated Speed:2880rpm
Altitude:1000m.asl
Slip:4.41%
Protection Degree:IP55
Rated Voltage:        400V
Cooling:IC411-TEFC
Connection:Y
Vibration:2.8mm/s
Rated Current:    1.7A
Approx. Weight:
kg
Locked Rotor Current:610%
Moment of Inertia:0.00121kg.m2
No Load Current:


Noise Level (Lp):56dB(A)
Rated Torque:2.5Nm
Starting Method:Direct on line
Locked Rotor Torque:220%
Coupling:Direct
Breakdown Touque:230%
Direction of Rotation:Both (CW and CCW)
Service Factor:1.0

Load Type:Parabolic curve
Performance
                                   Efficiency(%)
                                         Power Factor
                     50%75%100%
                        50%75%100%
                      75.478.378.2
                          0.630.760.83
Bearing   Information
Bearing   :DE  NDE
Regreasing int, (h)DE  NDE
6204 C06204 C0
1000010000
Standards
Specification    IEC60034-1
Noise  IEC60034-9
Test  IEC60034-2
Vibration  IEC60034-14
Features
Frame Material


Aluminum

Painting


RAL5001

Fan cover material


Steel

Bolt material


carbon steel

Overload   protector(phenolic)

Without overload   protector
Overheat protector





Connection   cables quantity

6

Fan material


Plastic

Terminal box


Top

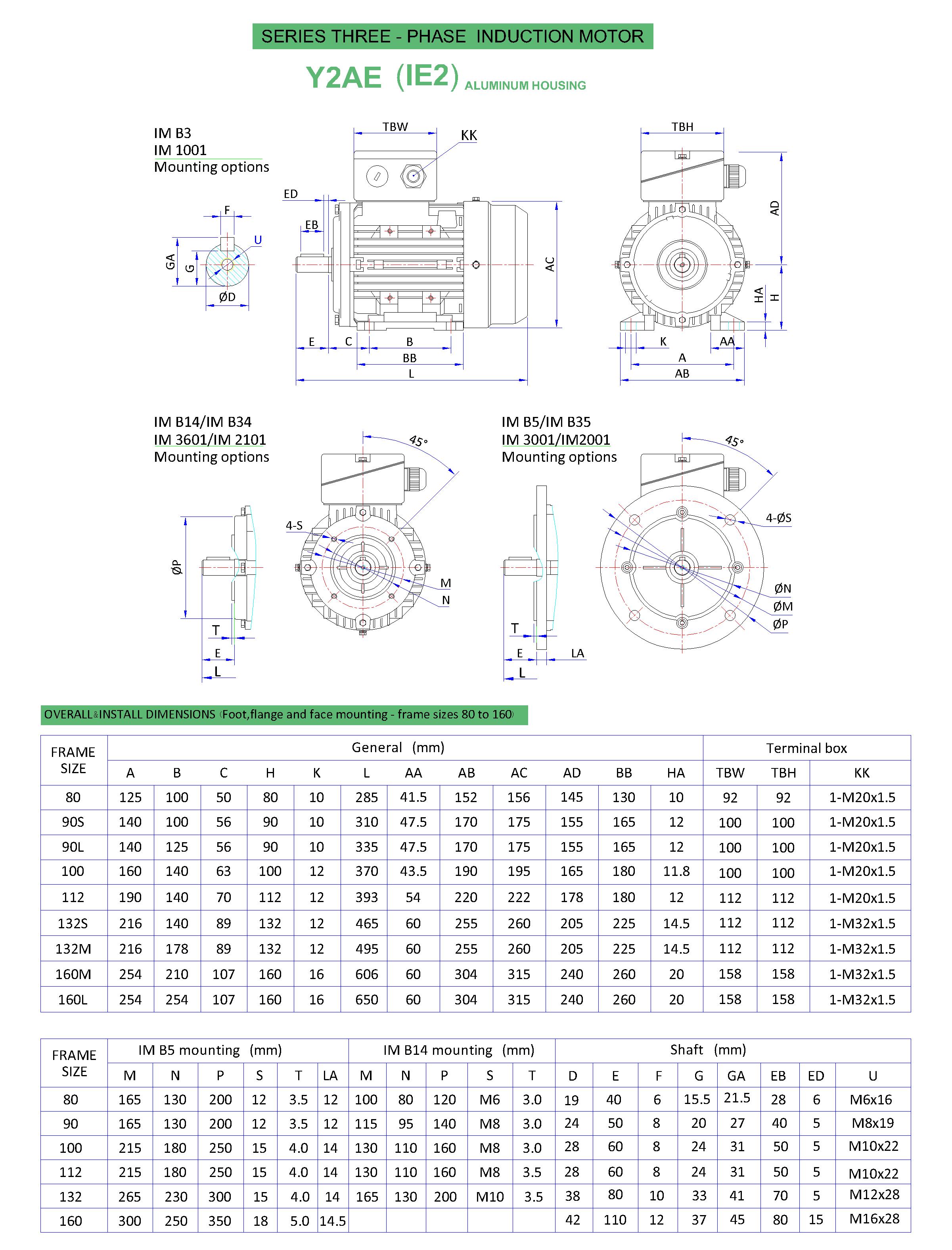

drawing
