Y2AE132S1-2 5.5kW 2P 400V 50Hz IC411-TEFC

Product features
Frame: 132mm Insulation Class: F
Output: 5.5kW Mounting: B3, B5, B35
Rated Voltage: 400/690 V Terminal Box: Top
Frequency: 50Hz Duty: S1
Poles: 2p Ambient Temperature: -20～40°C
Synchronous Speed ​​3000 r/min Cooling: IC411-TEFC
Availability:

Y2AE132S1-2 5.5kW 2P 400V 50Hz IC411-TEFC


Type:                       IE2        Y2AE132S1-2     5.5kW      400V      50Hz
TECHNICAL DATA
Frame:132mm
Insulation Class:F
Output:5.5kW
Temperature Rise:44K
Frequency:50Hz
Duty:S1
Poles:2P
Ambient Temperature:-20～40°C
Rated Speed:2930rpm
Altitude:1000m.asl
Slip:2.57%
Protection Degree:IP55
Rated Voltage:    400V
Cooling:IC411-TEFC
Connection:△
Vibration:2.8mm/s
Rated Current:  10.1A
Approx. Weight:
kg
Locked Rotor Current:750%
Moment of Inertia:0.01886kg.m2
No Load Current:


Noise Level (Lp):68dB(A)
Rated Torque:17.9Nm
Starting Method:Direct on line
Locked Rotor Torque:220%
Coupling:Direct
Breakdown Touque:230%
Direction of Rotation:Both (CW and CCW)
Service Factor:1.0

Load Type:Parabolic curve
Performance
                                        Efficiency(%)
                                          Power Factor
                                  50%        75%100%
                                 50%          75%100%
                                  86.1    87.887.8
                                  0.790.860.89
Bearing   Information
Bearing   :DE NDE
Regreasing int, (h)DE NDE
6308 C06308 C0
1000010000
Standards
Specification  IEC60034-1
Noise IEC60034-9
Test IEC60034-2
Vibration IEC60034-14
Features
Frame Material


Aluminum

Painting


RAL5001

Fan cover material


Steel

Bolt material


carbon steel

Overload   protector(phenolic)

Without overload   protector
Overheat protector





Connection   cables quantity

6

Fan material


Plastic

Terminal box


Top

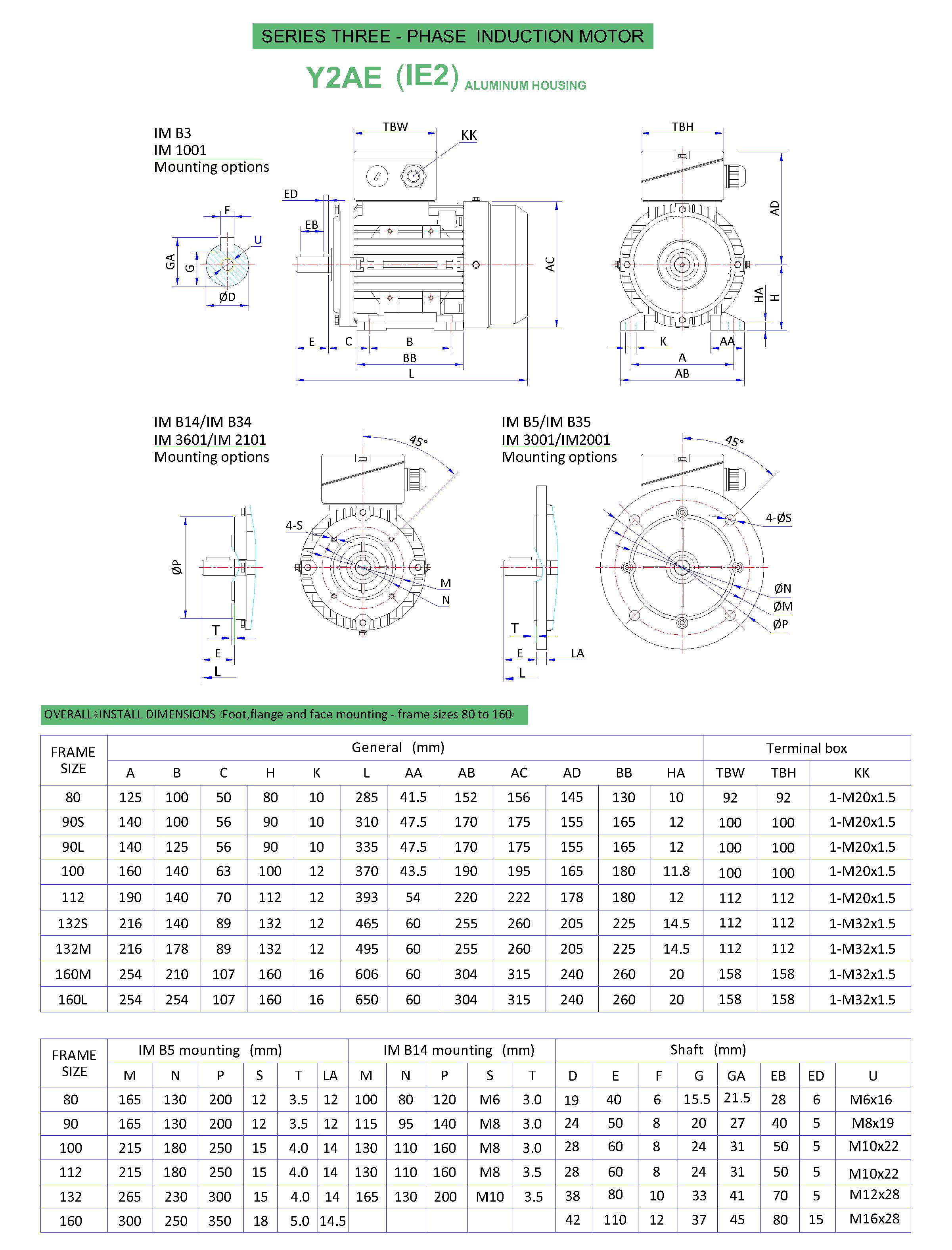

drawing
