Y2AE132M1-6 4kW 6P 400V 50Hz IC411-TEFC

Product features
Frame: 132mm Insulation Class: F
Output: 4kW Mounting: B3, B14, B5, B35
Rated Voltage: 400/690 V Terminal Box: Top
Frequency: 50Hz Duty: S1
Poles: 6p Ambient Temperature: -20～40°C
Synchronous Speed ​​1000 r/min Cooling: IC411-TEFC

Availability:

Y2AE132M1-6 4kW 6P 400V 50Hz IC411-TEFC


Type:                       IE2         Y2AE132M1-6     4kW        400V      50Hz
TECHNICAL DATA
Frame:132mm
Insulation Class:F
Output:4kW
Temperature Rise:47K
Frequency:50Hz
Duty:S1
Poles:6P
Ambient Temperature:-20～40°C
Rated Speed:974rpm
Altitude:1000m.asl
Slip:2.91%
Protection Degree:IP55
Rated Voltage:    400V
Cooling:IC411-TEFC
Connection:△
Vibration:2.8mm/s
Rated Current:  9.0A
Approx. Weight:
kg
Locked Rotor Current:650%
Moment of Inertia:0.05318kg.m2
No Load Current:


Noise Level (Lp):62dB(A)
Rated Torque:39.2Nm
Starting Method:Direct on line
Locked Rotor Torque:210%
Coupling:Direct
Breakdown Touque:210%
Direction of Rotation:Both (CW and CCW)
Service Factor:1.0

Load Type:Parabolic curve
Performance
                                          Efficiency(%)
                                                  Power Factor
                    50%75%100%
                      50%75%100%
                    82.484.884.6
                       0.550.680.76
Bearing   Information
Bearing   :DE NDE
Regreasing int, (h)DE NDE
6308 C06308 C0
1000010000
Standards
Specification  IEC60034-1
Noise IEC60034-9
Test IEC60034-2
Vibration IEC60034-14
Features
Frame Material


Aluminum

Painting


RAL5001

Fan cover material


Steel

Bolt material


carbon steel

Overload   protector(phenolic)

Without overload   protector
Overheat protector





Connection   cables quantity

6

Fan material


Plastic

Terminal box


Top

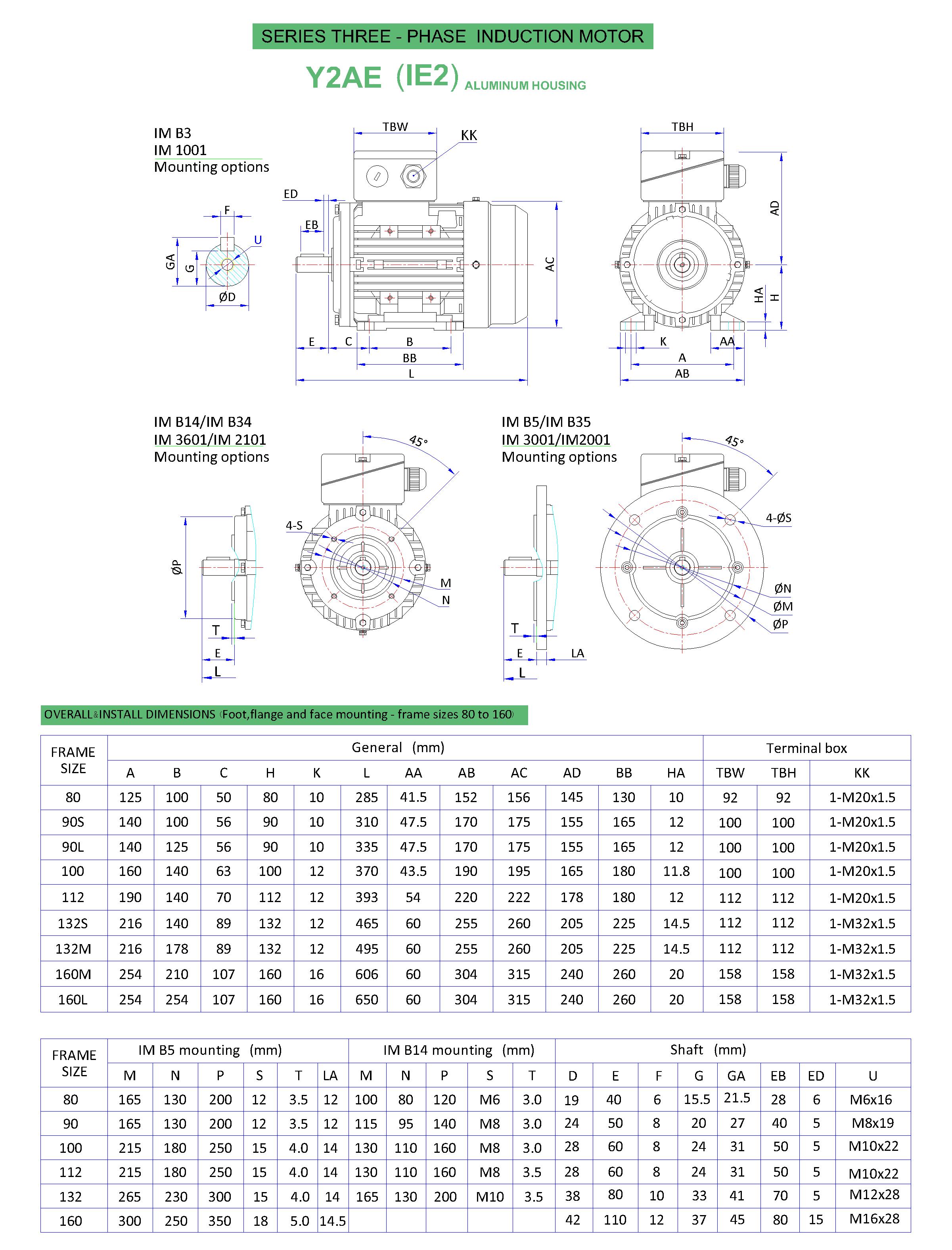

drawing
