Y2AE112M-8 1.5kW 8P 400V 50Hz IC411-TEFC

Product features
Frame: 112mm Insulation Class: F
Output: 1.5kW Mounting: B3, B14, B5, B35
Rated Voltage: 230/400 V Terminal Box: Top
Frequency: 50Hz Duty: S1
Poles: 8P Ambient Temperature: -20～40°C
Synchronous Speed: 750r/min Cooling: IC411-TEFC

Availability:

Y2AE112M-8 1.5kW 8P 400V 50Hz IC411-TEFC
Type:                      IE2         Y2AE112M-8     1.5kW      400V      50Hz
TECHNICAL DATA
Frame:112mm
Insulation Class:F
Output:1.5kW
Temperature Rise:60K
Frequency:50Hz
Duty:S1
Poles:8P
Ambient Temperature:-20～40°C
Rated Speed:703rpm
Altitude:1000m.asl
Slip:6.87%
Protection Degree:IP55
Rated Voltage:    400V
Cooling:IC411-TEFC
Connection:Y
Vibration:2.8mm/s
Rated Current:  4.1A
Approx. Weight:
kg
Locked Rotor Current:500%
Moment of Inertia:0.019kg.m2
No Load Current:


Noise Level (Lp):60dB(A)
Rated Torque:20.4Nm
Starting Method:Direct on line
Locked Rotor Torque:180%
Coupling:Direct
Breakdown Touque:200%
Direction of Rotation:Both (CW and CCW)
Service Factor:1.0

Load Type:Parabolic curve
Performance
                                           Efficiency(%)
                                      Power Factor
                          50%  75%100%
                                  50%75%100%
                         75.878.477.7
                                  0.460.600.69
Bearing   Information
Bearing   :DENDE
Regreasing int, (h)DENDE
6306 C06306 C0
1000010000







Standards
Specification  IEC60034-1
NoiseIEC60034-9
TestIEC60034-2
VibrationIEC60034-14
Features
Frame Material


Aluminum

Painting


RAL5009

Fan cover material


Steel

Bolt material


carbon steel

Overload   protector(phenolic)

Without overload   protector
Overheat protector


With winding  3-PTC150

Connection   cables quantity

6

Fan material


Plastic

Terminal box


Top

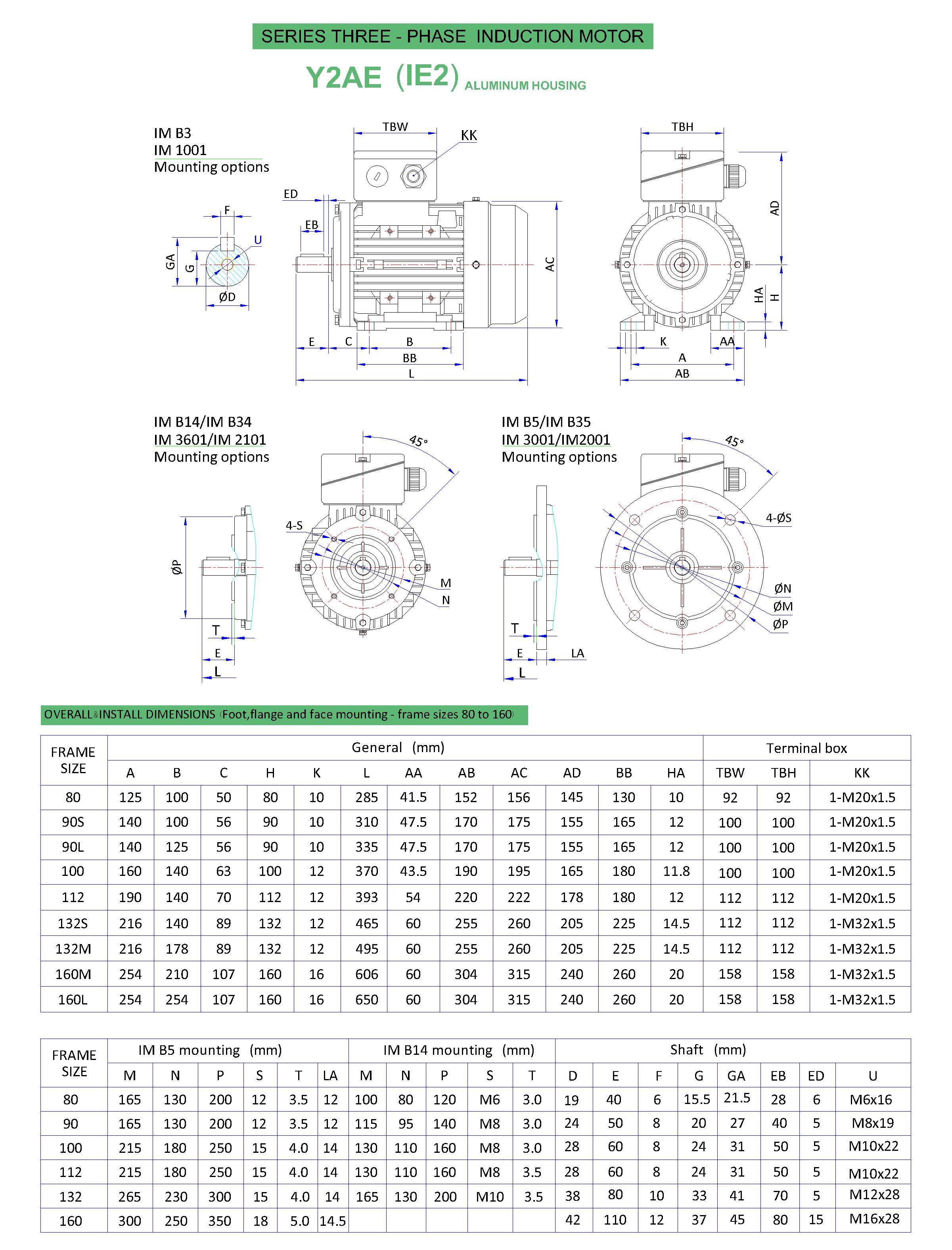

drwing
