Y2AE112M-6 2.2kW 6P 400V 50Hz IC411-TEFC

Product features
Frame: 112mm Insulation Class: F
Output: 2.2kW Mounting: B3, B14, B5, B35
Rated Voltage: 230/400 V Terminal Box Top
Frequency: 50Hz Duty: S1
Poles: 6p Ambient Temperature: -20～40°C
Synchronous Speed ​​1000 r/min Cooling: IC411-TEFC

Availability:

Y2AE112M-6 2.2kW 6P 400V 50Hz IC411-TEFC


Type:                       IE2         Y2AE112M-6     2.2kW      400V      50Hz
TECHNICAL DATA
Frame:112mm
Insulation Class:F
Output:2.2kW
Temperature Rise:48K
Frequency:50Hz
Duty:S1
Poles:6P
Ambient Temperature:-20～40°C
Rated Speed:960rpm
Altitude:1000m.asl
Slip:3.95%
Protection Degree:IP55
Rated Voltage:    400V
Cooling:IC411-TEFC
Connection:Y
Vibration:2.8mm/s
Rated Current:  5.0A
Approx. Weight:
kg
Locked Rotor Current:650%
Moment of Inertia:0.01966kg.m2
No Load Current:


Noise Level (Lp):56dB(A)
Rated Torque:21.9Nm
Starting Method:Direct on line
Locked Rotor Torque:200%
Coupling:Direct
Breakdown Touque:210%
Direction of Rotation:Both (CW and CCW)
Service Factor:1.0

Load Type:Parabolic curve
Performance
                                               Efficiency(%)
                                              Power Factor
                       50%75%100%
                   50%75%100%
                      79.982.082.1
                    0.540.680.77
Bearing   Information
Bearing   :DE NDE
Regreasing int, (h)DE NDE
6306 C06306 C0
1000010000
Standards
Specification  IEC60034-1
Noise IEC60034-9
Test IEC60034-2
Vibration IEC60034-14
Features
Frame Material


Aluminum

Painting


RAL5001

Fan cover material


Steel

Bolt material


carbon steel

Overload   protector(phenolic)

Without overload   protector
Overheat protector





Connection   cables quantity

6

Fan material


Plastic

Terminal box


Top

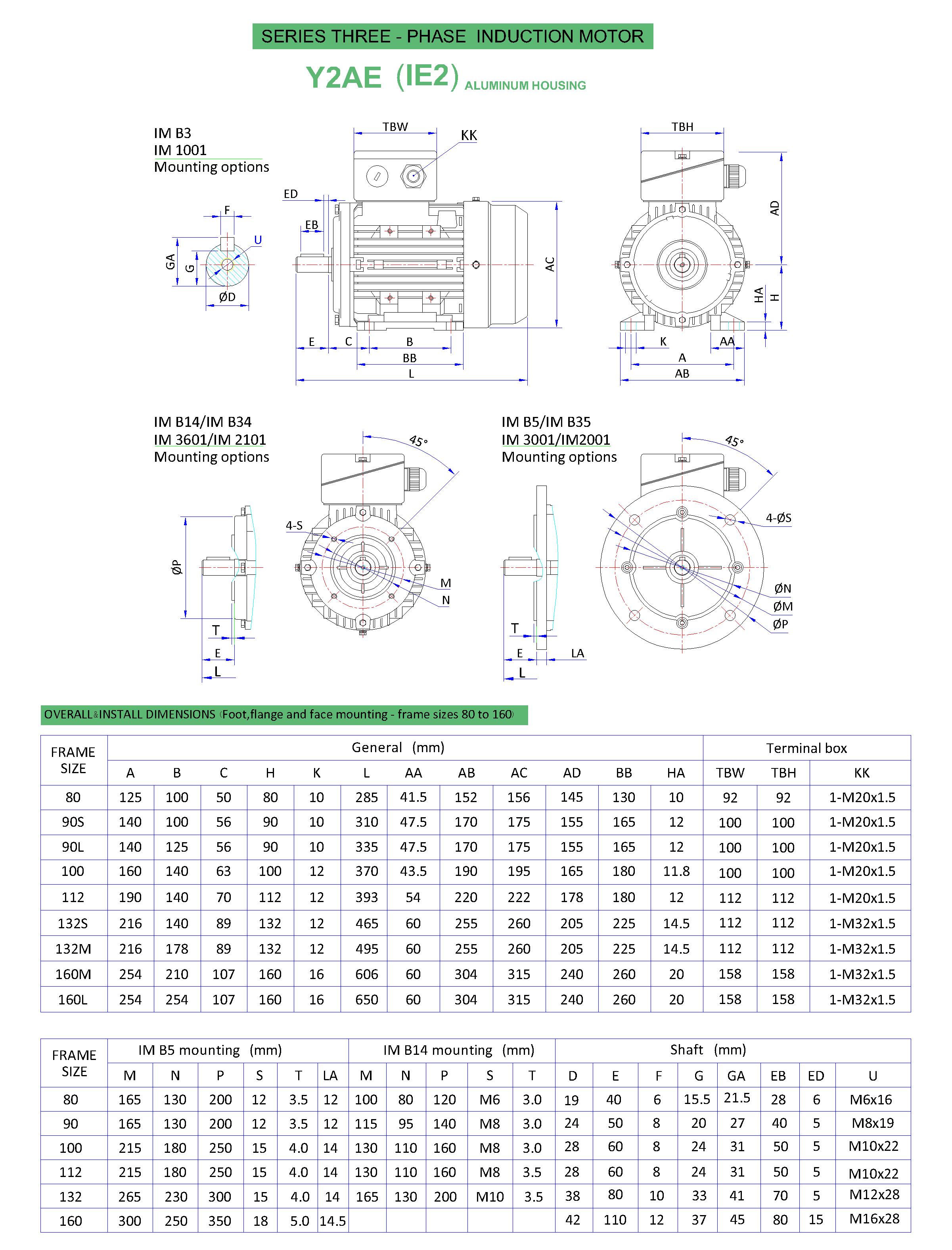

drawing
